BGP Peer Groups and Peer Templates: Streamlining BGP Configuration
Introduction to BGP Peer Groups
BGP (Border Gateway Protocol) is a powerful routing protocol, but managing a large number of BGP neighbors can be challenging. BGP Peer Groups were introduced as a means to optimize BGP UPDATE generation and configuration management. They allow individual neighbors with common characteristics to inherit the same configuration commands and receive the same BGP updates. While initially used for configuration management, BGP Peer Groups have limitations, particularly in complex routing scenarios.
Limitations of BGP Peer Groups
The major limitation of BGP Peer Groups is that they are tied to a BGP update group. When the router calculates a set of paths to be advertised to members of a peer group, it does so based on route policies applied to the entire peer group. This limitation becomes problematic in scenarios where different peer group members need separate route policies. For example, if certain routers must advertise a different next-hop value than others, a separate peer group needs to be created for those routers, reducing the effectiveness of BGP Peer Groups in complex routing policy environments.
Introducing BGP Dynamic Update Groups
To address the limitations of BGP Peer Groups, the BGP Dynamic Update Group feature was introduced. This feature dynamically calculates which neighbors share the same route policies and adds them to a real-time update group. As policies are added or removed from BGP neighbors, the router adjusts the dynamic update groups accordingly. This approach eliminates the need for static peer groups and leads to a new form of configuration management called peer templates.
Peer Templates: A New Approach
Peer templates provide true template-like functionality for BGP configuration, offering two distinct types: Peer Session Templates and Peer Policy Templates.
Peer Session Templates
Peer Session Templates encompass all session-related configuration commands such as update-source, remote-as, and multihop configurations. To create these templates, use the template peer-session name command in BGP router configuration mode. All relevant commands are entered in this mode. These templates are then applied to BGP neighbors using the neighbor neighbor-address inherit peer-session template-name command.
Peer Policy Templates
Peer Policy Templates encompass routing policy-related commands that manipulate the set of paths advertised or their path attributes. These templates are created using the template peer-policy name command in BGP router configuration mode. Similar to session templates, the commands are entered in peer policy template configuration mode. The templates are applied to BGP neighbors using the neighbor neighbor-address inherit peer-policy template-name command.
Inheritance of Configuration Settings
Peer templates offer the ability to inherit configuration settings from other templates of the same type, allowing for nesting of templates. This means that common configuration parameters can be created as separate peer templates, and more specific peer templates can inherit these common settings while containing specialized configuration parameters for specific neighbor types.
Key Benefits
BGP Peer Session Templates offer several key advantages:
-
Consistency: Templates ensure that all BGP peers sharing a template have consistent configurations. This is crucial for network stability and predictability.
-
Simplification: The template approach simplifies BGP peer configuration, reducing the likelihood of errors and misconfigurations.
-
Efficiency: With templates, you can quickly apply configuration changes to multiple peers, saving time and effort.
Configuration of BGP Peer Session Templates
Configuring BGP Peer Session Templates involves the following steps:
-
Template Creation: Create a BGP Peer Session Template by specifying common configuration settings, such as AS numbers, timers, and authentication parameters.
-
Application to Peers: Apply the template to multiple BGP peers by referencing the template in their configurations.
-
Individual Peer Configuration (if needed): Override template settings for individual peers when specific customization is required.
Practical Use Cases
BGP Peer Session Templates are particularly valuable in various network scenarios, including:
-
Large-Scale Networks: Managing numerous BGP peers can be challenging. Templates simplify the process, ensuring consistency across the network.
-
Internet Service Providers (ISPs): ISPs with diverse customer BGP peers can use templates to streamline and standardize configurations.
-
Cloud Service Providers: In cloud environments, templates can be employed to manage BGP sessions with various tenants or customers.
-
Multi-Homed Networks: Organizations with multiple internet connections can use templates to ensure that the BGP sessions with different ISPs have consistent settings.

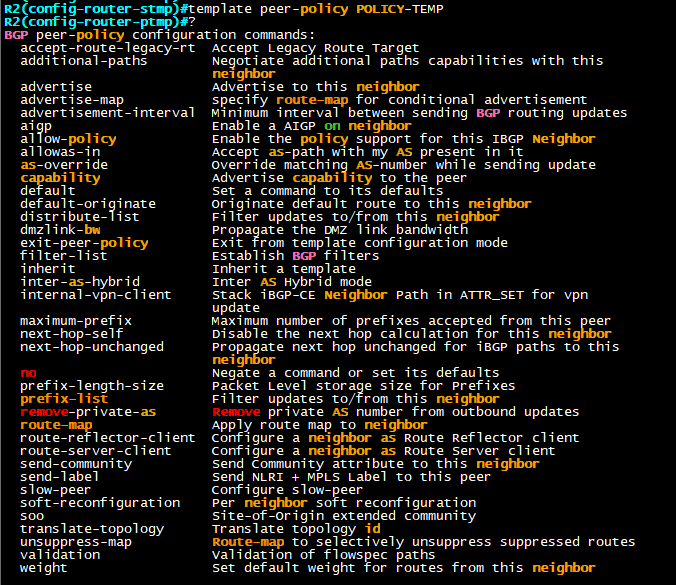

options on cisco for a peer-session template:

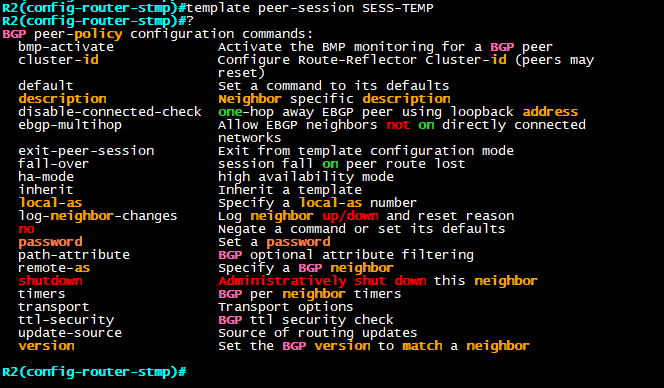

options on cisco for a peer-session template:
Conclusion
BGP Peer Session Templates are a powerful tool for simplifying BGP peer configuration in diverse network environments. By creating templates and applying them to multiple peers, network administrators can ensure consistency, streamline configurations, reduce errors, and efficiently manage BGP peers, contributing to network stability and reliability.
